Now onto removing the writing loom. I have already disconnected the charging and ignition systems:
and I've removed the regulator and rectifier units along with the toolholder

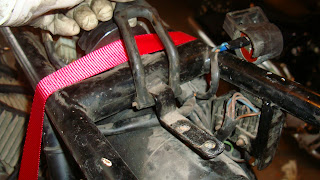

The flasher relay is held next to the reservoir for the linked brake system, under the seat and in front of the battery:
Two sub-looms are strapped together on the right hand side of the frame, and run along the breather box:
The fuse box:
rear of the fusebox:
The fusebox is held in place by two screws that are held by two nuts welded to the frame brackets
Starter motor relay
Battery connections:
Neutral indicator switch
Starter and headlamp flasher relays
Oil pressure warning switch:
Loom removed!
